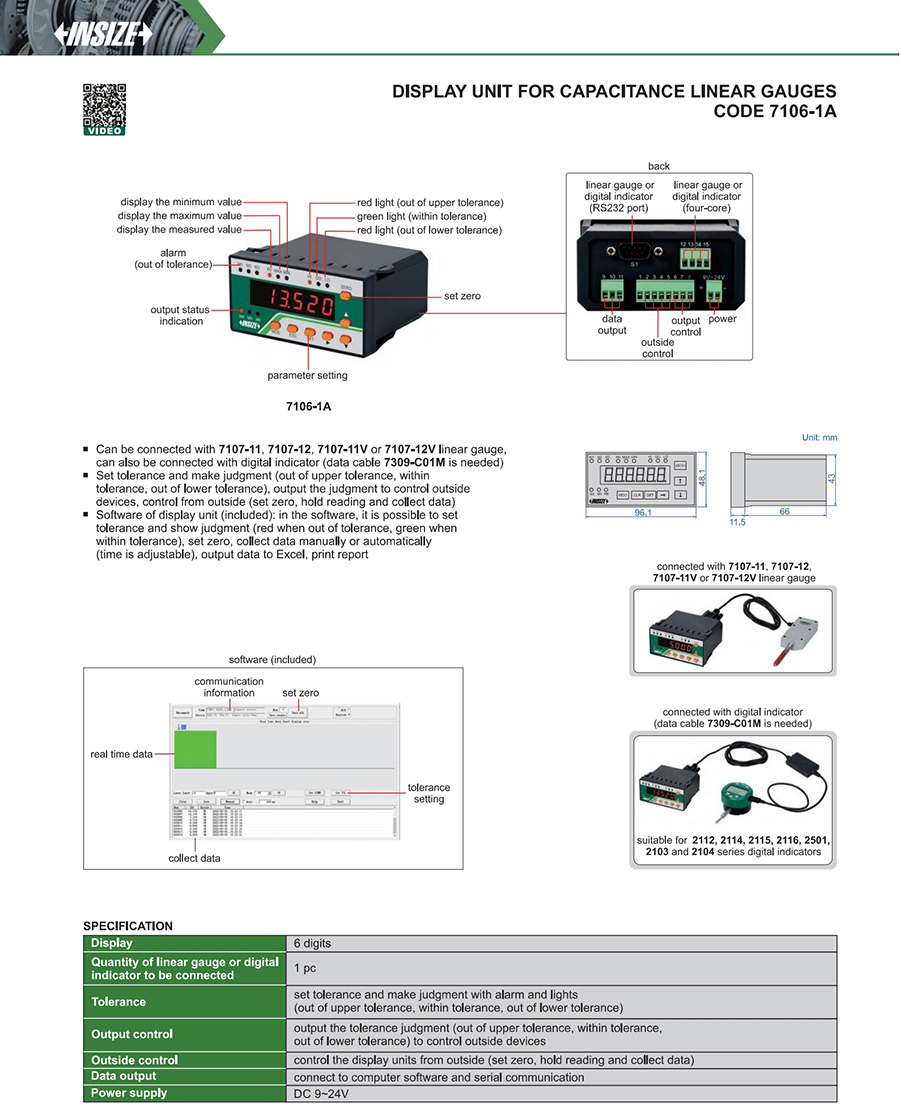

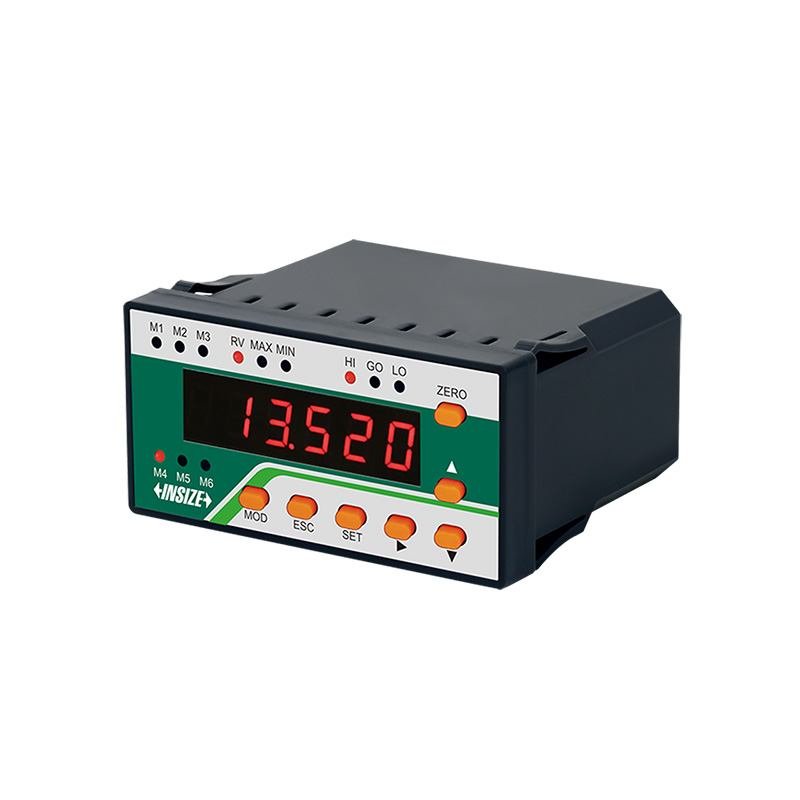

Display Unit For Capacitance Linear Gauges
Code: 7106-1A
Can be connected with 7107-11, 7107-12, 7107-11V or 7107-12V linear gauge, can also be connected with digital indicator (data cable 7309-C01M is needed)
Set tolerance and make judgment (out of upper tolerance, within tolerance, out of lower tolerance), output the judgment to control outside devices, control from outside (set zero, hold reading and collect data)
Specification
| Code | Type | Display | Quantity of linear gauge or digital indicator to be connected |
|---|---|---|---|
| 7106-1A | capacitance probe | 6 digits | 1 pc |
