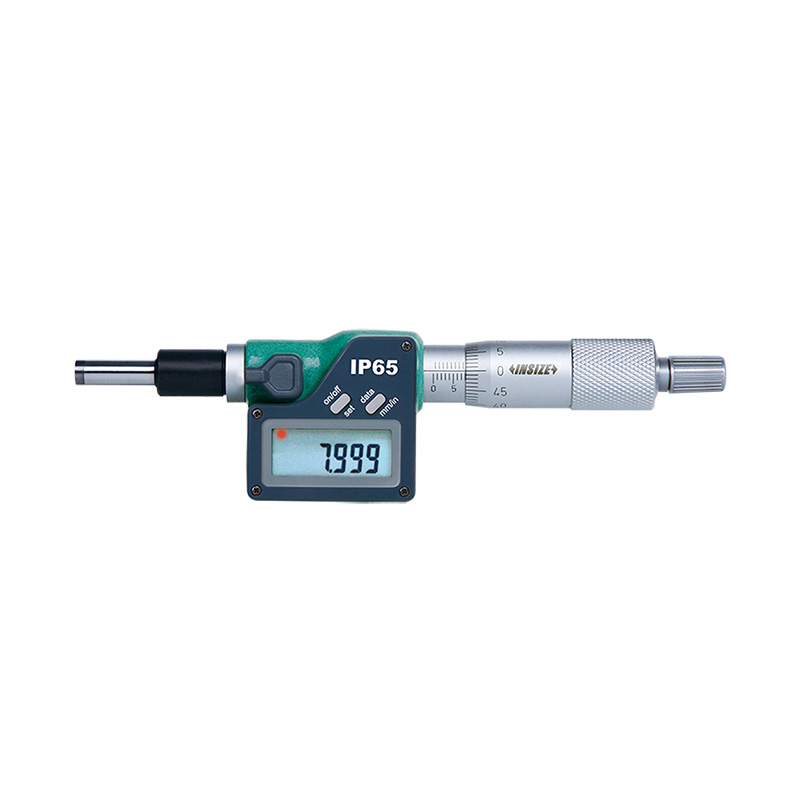

Digital Micrometer Heads
Code: 6353
IP65 dust/waterproof
Button function: on/off, set, mm/inch, data transmit
Data output, automatic power off
Ratchet stop
Specification
| Code | Type | Range | Accuracy | Resolution |
|---|---|---|---|---|
| 6353-25 | Rotating spindle | 0-25mm/0-1" | ±2μm | 0.001mm/0.00005" |
| 6353-25W | Rotating spindle | 0-25mm/0-1" | ±2μm | 0.001mm/0.00005" |
| 6353-25S | Rotating spindle | 0-25mm/0-1" | ±2μm | 0.001mm/0.00005" |
| 6353-25WS | Rotating spindle | 0-25mm/0-1" | ±2μm | 0.001mm/0.00005" |
| 6353-50W | Rotating spindle | 0-50mm/0-2" | ±4μm | 0.001mm/0.00005" |
| 6354-25W | Non-rotating spindle | 0-25mm/0-1" | ±2μm | 0.001mm/0.00005" |
