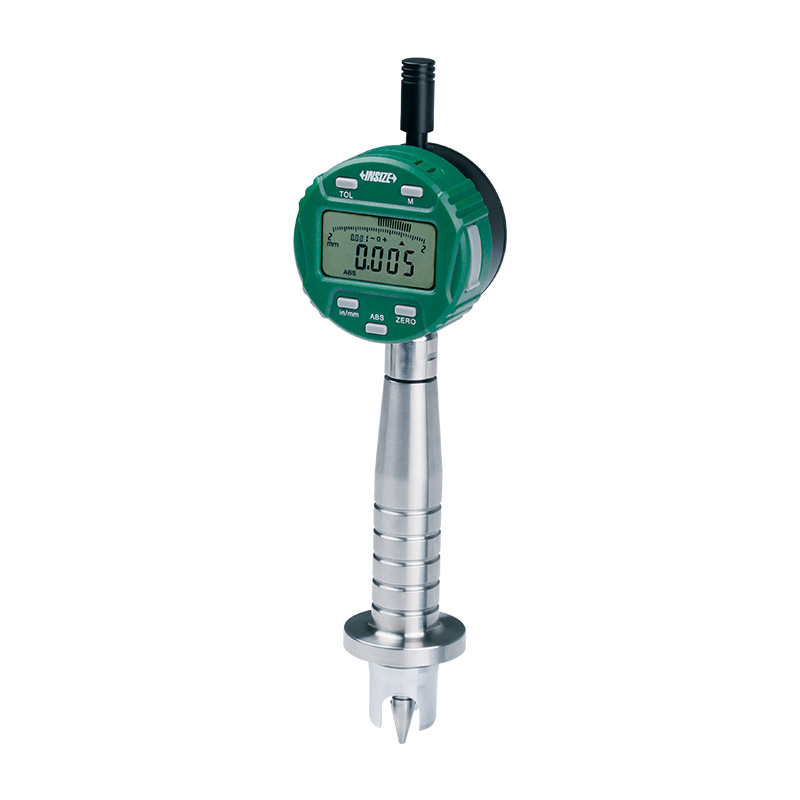

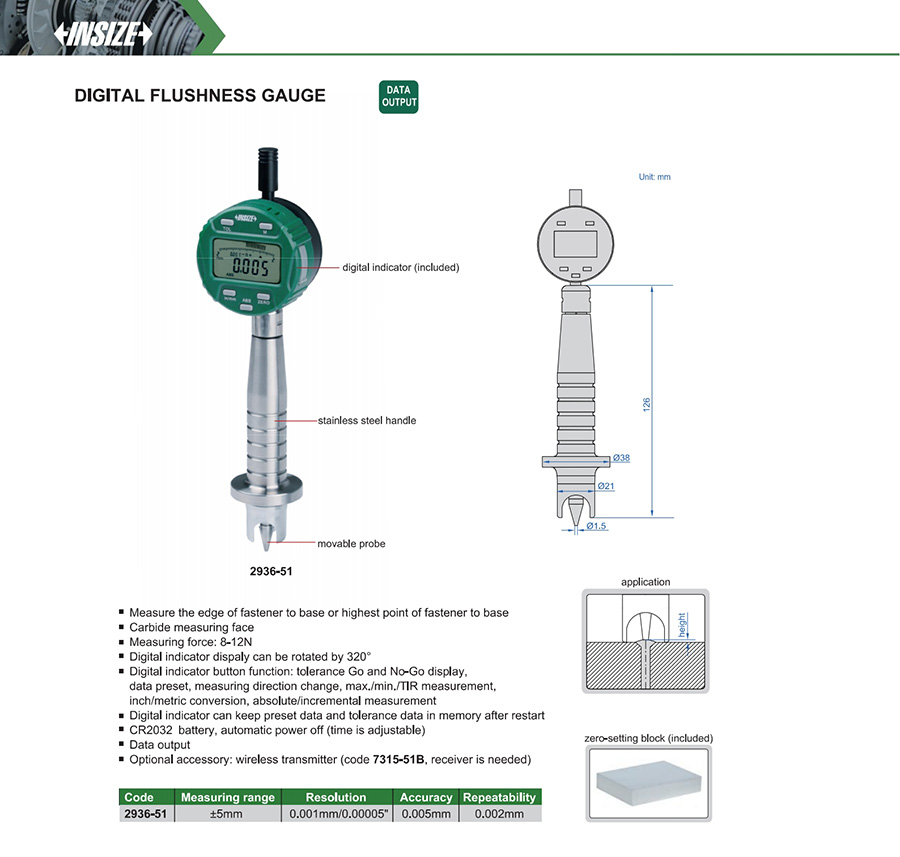

Digital Flushness Gauge
Code: 2936-51
Measure the edge of fastener to base or highest point of fastener to base
Carbide measuring face
Measuring force: 8-12N
Digital indicator dispaly can be rotated by 320°
Digital indicator button function: tolerance Go and No-Go display, data preset, measuring direction change, max./min./TlR measurement, inch/metric conversion, absolute/incremental measurement
Specification
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 2936-51 | ±5mm | 0.005mm | 0.001mm/0.00005" |
