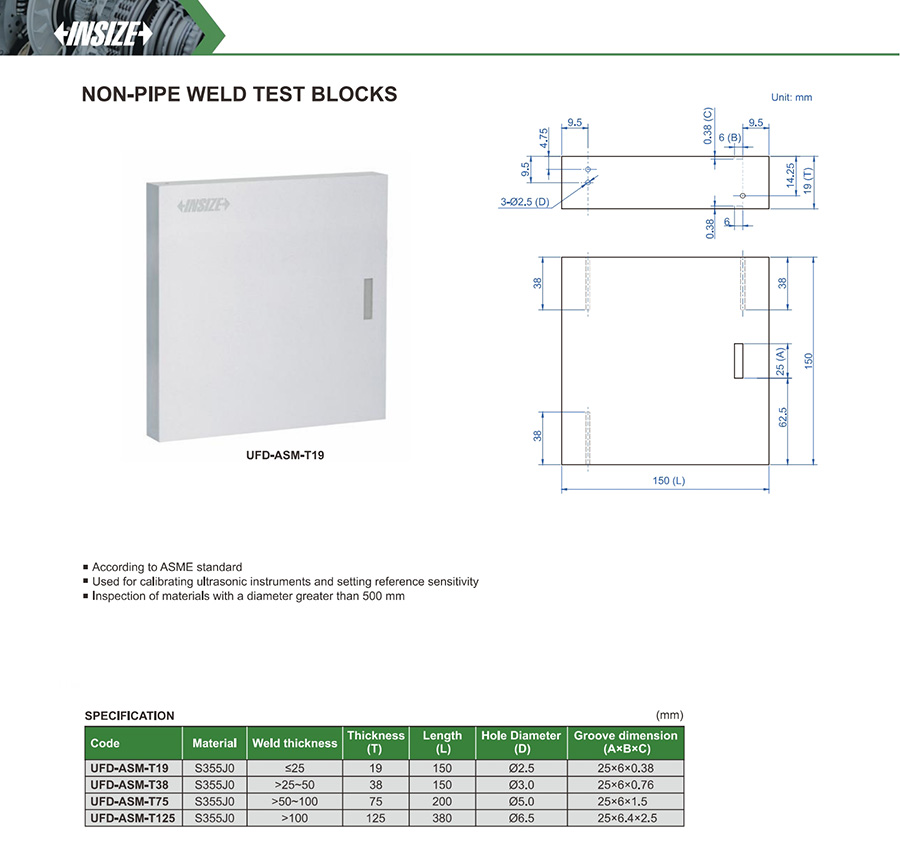

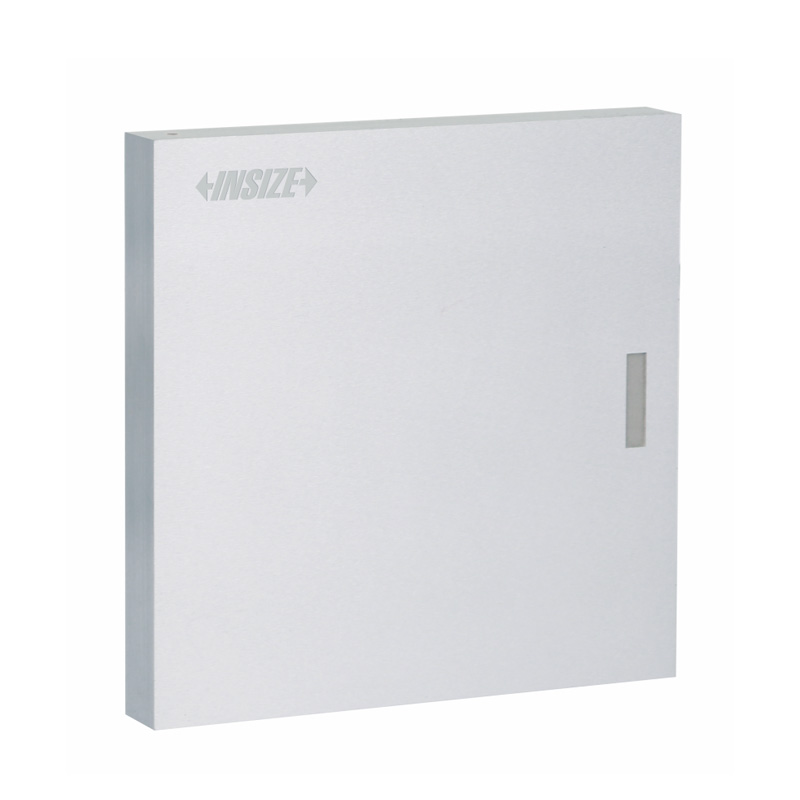

Non-Pipe Weld Test Blocks
Code: UFD-ASM Series
According to ASME standard
Used for calibrating ultrasonic instruments and setting reference sensitivity
Inspection of materials with a diameter greater than 500 mm
Specification
| Code | Material | Weld thickness |
|---|---|---|
| UFD-ASM-T19 | S355J0 | ≤25 |
| UFD-ASM-T38 | S355J0 | >25~50 |
| UFD-ASM-T75 | S355J0 | >50~100 |
| UFD-ASM-T125 | S355J0 | >100 |
