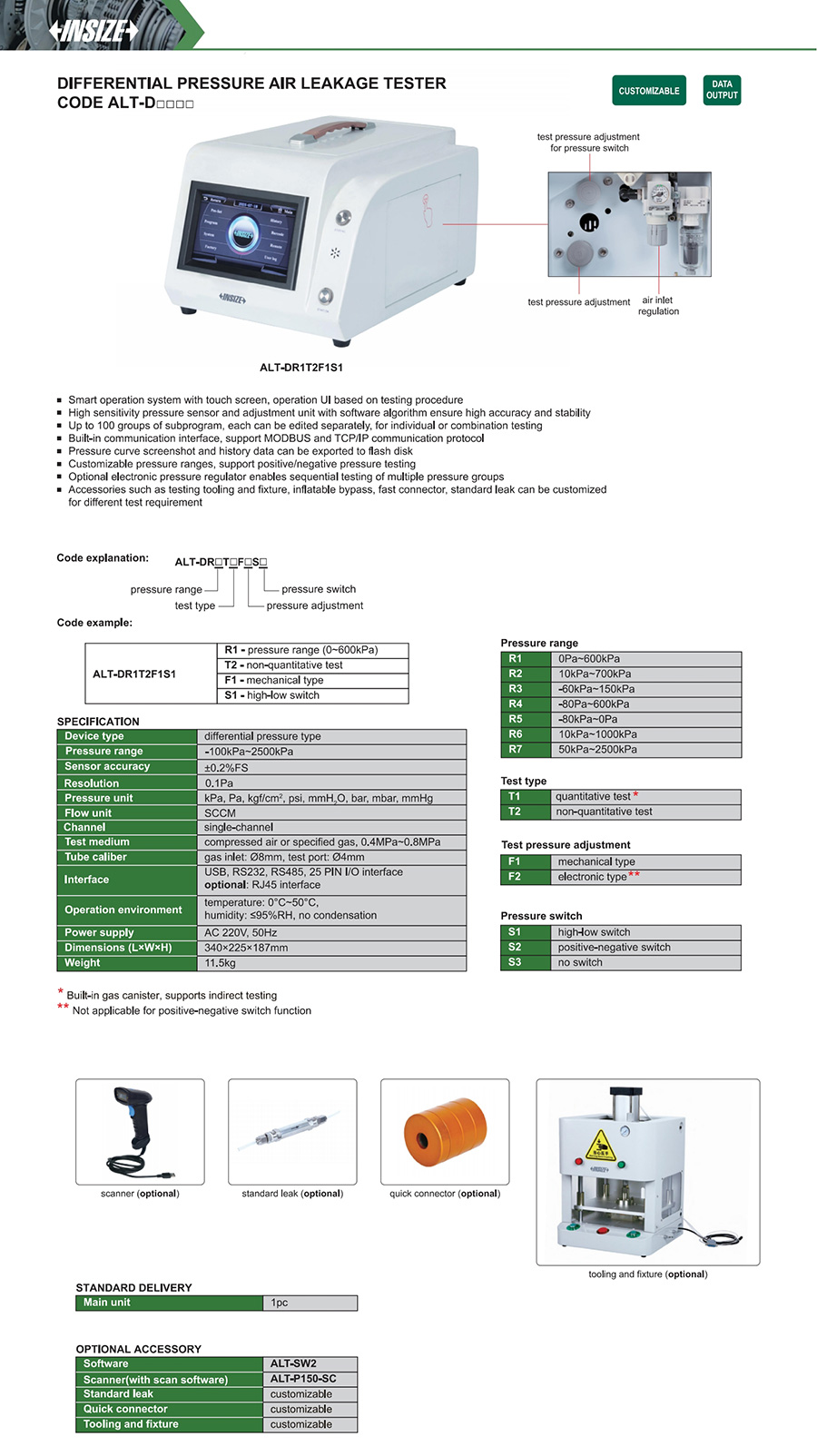

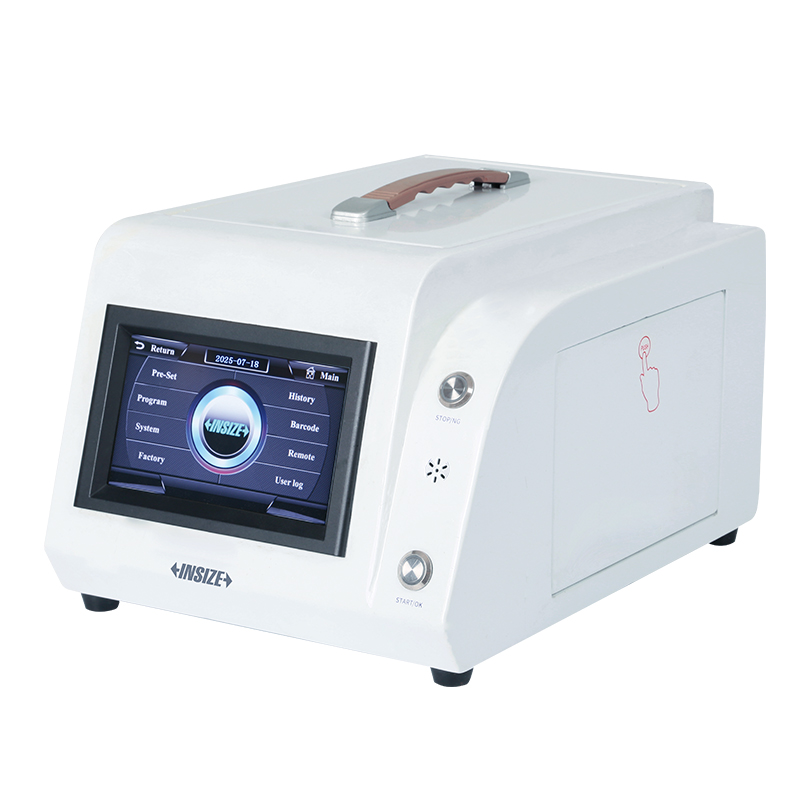

Differential Pressure Air Leakage Tester
Code: ALT-D series
Smart operation system with touch screen, operation UI based on testing procedure
High sensitivity pressure sensor and adjustment unit with software algorithm ensure high accuracy and stability
Up to 100 groups of subprogram, each can be edited separately, for individual or combination testing
Built-in communication interface, support MODBUS and TCP/IP communication protocol
Pressure curve screenshot and history data can be exported to flash disk
Specification
| Code | Type | Range | Accuracy |
|---|---|---|---|
| ALT-D series | differential pressure type | -100kPa~2500kPa | ±0.2%FS |
