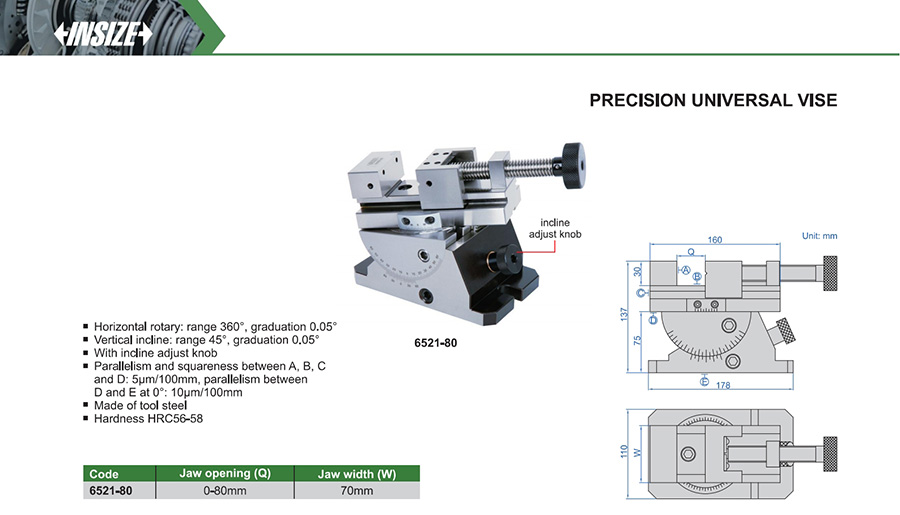

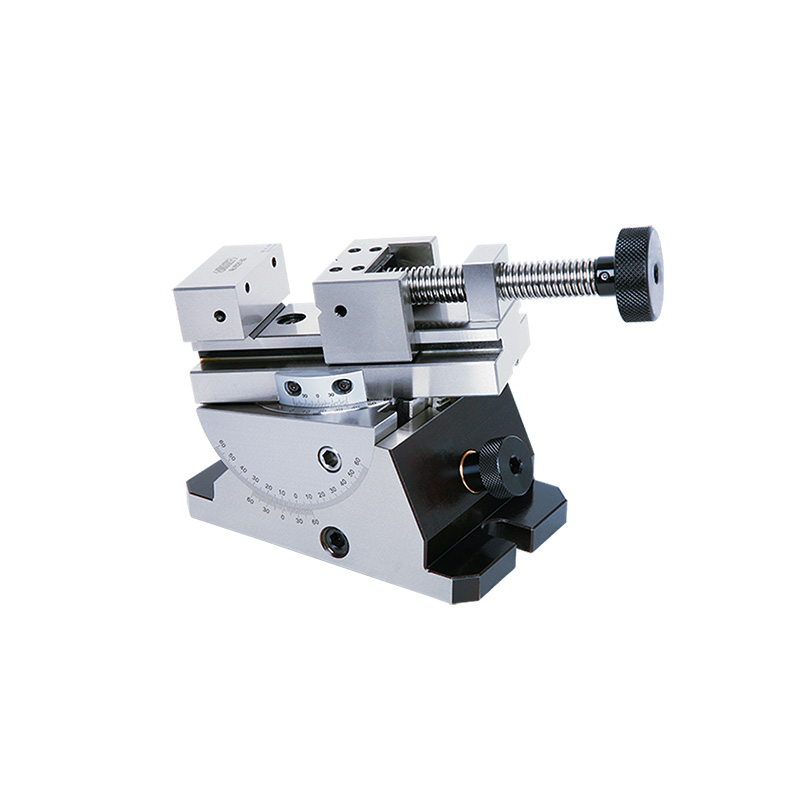

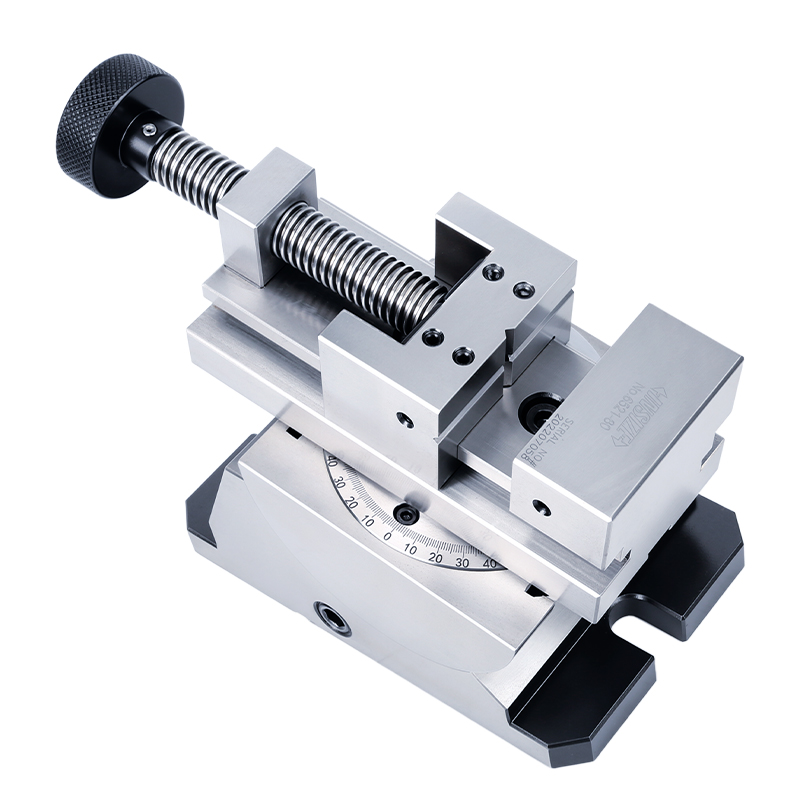

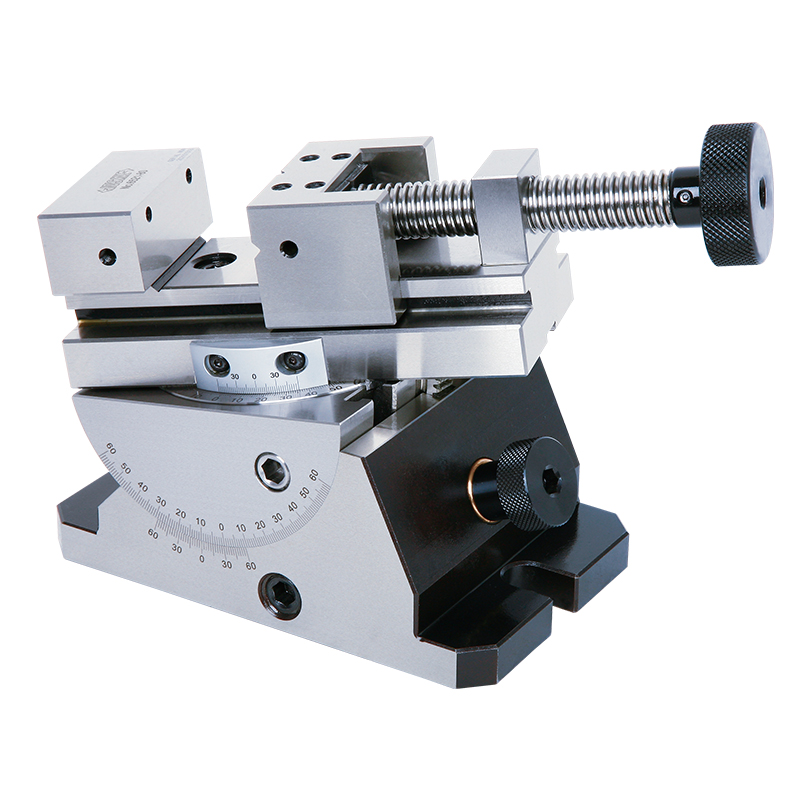

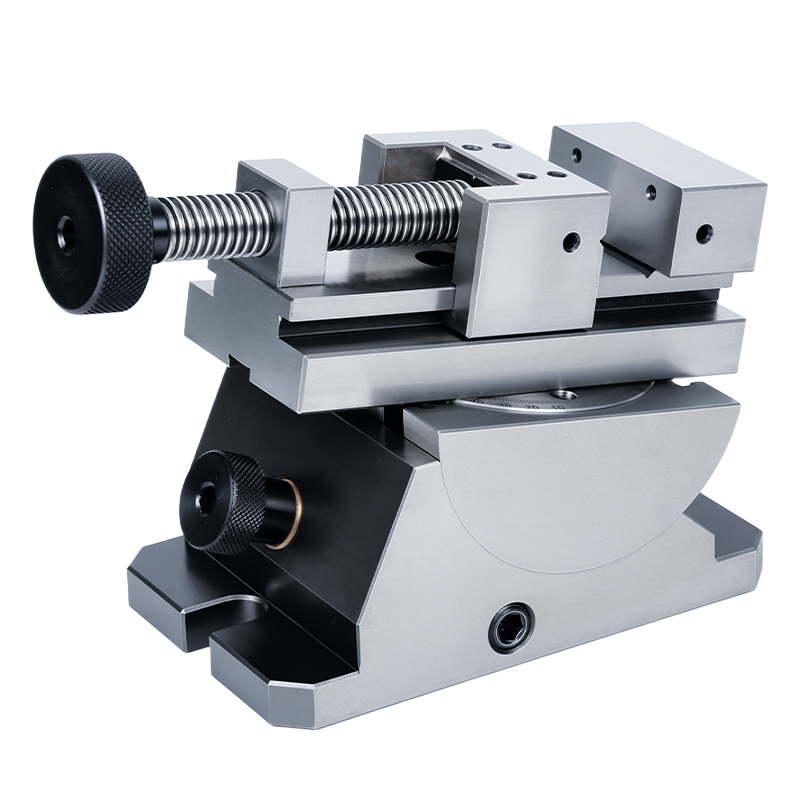

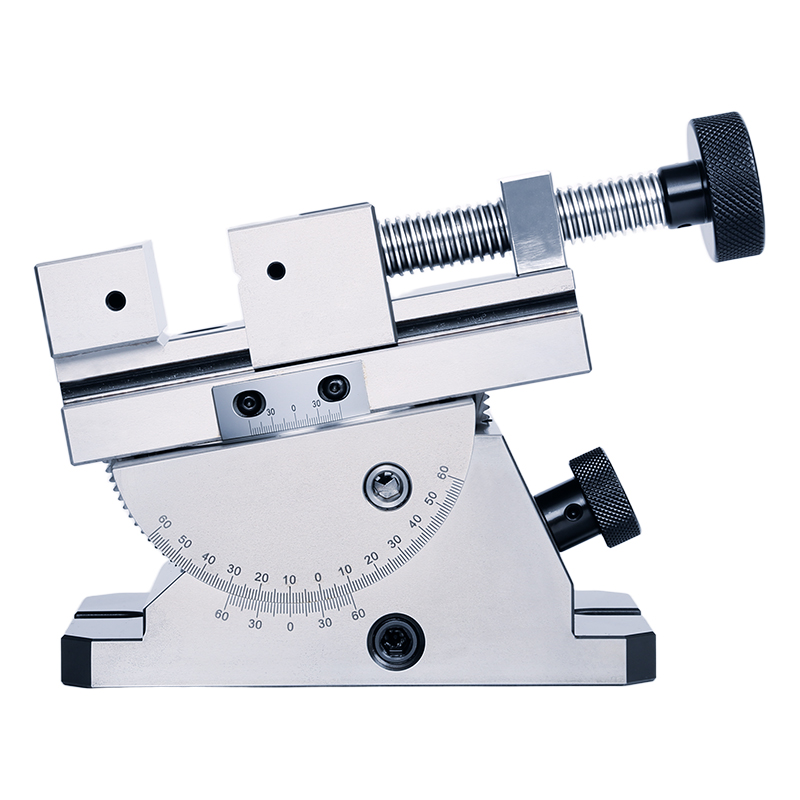

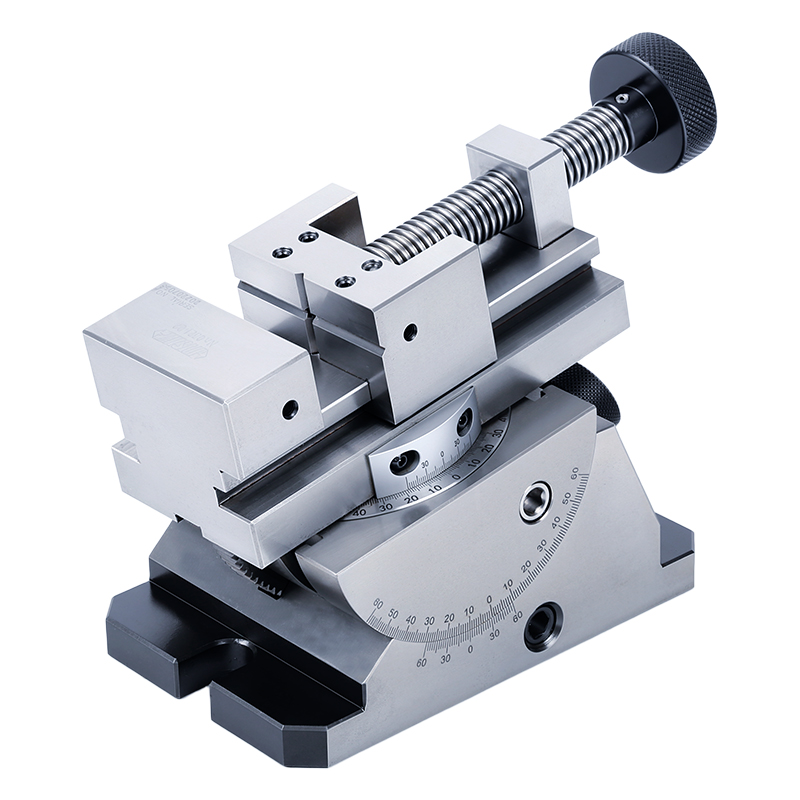

Precision Universal Vise
Code: 6521-80
Horizontal rotary: range 360°, graduation 0.05°
Vertical incline: range 45°, graduation 0.05°
With incline adjust knob
Parallelism and squareness between A, B, C and D: 5μm/100mm, parallelism between D and E at 0°: 10μm/100mm
Made of tool steel
Hardness HRC56-58
Specification
| Code | Jaw opening (Q) | Jaw width (W) | Parallelism | Squareness |
|---|---|---|---|---|
| 6521-80 | 0-80mm | 70mm | 5μm/100mm | 5μm/100mm |
